| 编号: | 127325 |
| 中文名称: | 抗菌肽Biotin-LC-LL-37 |
| 英文名: | Biotin-LC-LL-37 |
| 单字母: | Biotinyl-LCLLGDFFRKSKEKIGKEFKRIVQRIKDFLRNLVPRTES-OH |
| 三字母: | Biotinyl N端生物素标记 -Leu亮氨酸 -Cys半胱氨酸 -Leu亮氨酸 -Leu亮氨酸 -Gly甘氨酸 -Asp天冬氨酸 -Phe苯丙氨酸 -Phe苯丙氨酸 -Arg精氨酸 -Lys赖氨酸 -Ser丝氨酸 -Lys赖氨酸 -Glu谷氨酸 -Lys赖氨酸 -Ile异亮氨酸 -Gly甘氨酸 -Lys赖氨酸 -Glu谷氨酸 -Phe苯丙氨酸 -Lys赖氨酸 -Arg精氨酸 -Ile异亮氨酸 -Val缬氨酸 -Gln谷氨酰胺 -Arg精氨酸 -Ile异亮氨酸 -Lys赖氨酸 -Asp天冬氨酸 -Phe苯丙氨酸 -Leu亮氨酸 -Arg精氨酸 -Asn天冬酰胺 -Leu亮氨酸 -Val缬氨酸 -Pro脯氨酸 -Arg精氨酸 -Thr苏氨酸 -Glu谷氨酸 -Ser丝氨酸 -OHC端羧基 |
| 氨基酸个数: | 39 |
| 分子式: | C224H370N64O57S2 |
| 平均分子量: | 4935.86 |
| 精确分子量: | 4932.75 |
| 等电点(PI): | 11.7 |
| pH=7.0时的净电荷数: | 6.97 |
| 平均亲水性: | 0.56111111111111 |
| 疏水性值: | -0.53 |
| 消光系数: | - |
| 来源: | 人工化学合成，仅限科学研究使用，不得用于人体。 |
| 盐体系: | 可选TFA、HAc、HCl或其它 |
| 储存条件: | 负80℃至负20℃ |
| 标签: | 生物素标记肽(Biotinyl) 抗菌肽(Antimicrobial Peptides AMPs) |
专肽生物合成用于蛋白质-蛋白质相互作用研究的生物素化肽。尽管生物素可以在 N 端或 C 端引入（通过赖氨酸残基），但我们建议使用 N 端修饰，因为它成本低、成功率高、周转时间短且易于操作。因为多肽合成是从 C 端到 N 端合成的，因此，N 端修饰是 SPPS步骤的最后一步，不需要额外的特定缩合步骤。相比之下，C 端修饰需要额外的步骤，并且通常更复杂。当然，原则上生物素可以定位在任何地方。
生物素可以通过多种不同的接头或间隔物与肽分离。尽管如此，还是建议包含一个灵活的间隔物，例如 Ahx（一个 6 碳接头），以使生物素标签更加稳定或灵活。
专肽生物在 N 端或 C 端提供生物素化：生物素-N 端、赖氨酸-生物素-肽中间和赖氨酸-生物素-C 端。
专肽生物还可以使用 Ahx 接头或长碳 (LC) 接头提供生物素化：生物素-Ahx-N 末端、Lys-Ahx-生物素-肽中间、Lys-Ahx-生物素-C-末端。
（生物素结构）
示例：
GRGDS在N端和C端标记生物素的结构展示。
1、GRGDS在N端标记生物素，不增加Ahx 接头
2、GRGDS在N端标记生物素，增加一个Ahx 接头
3、GRGDS在C端标记生物素，不增加Ahx 接头
4、GRGDS在C端标记生物素，增加一个Ahx 接头。
抗菌肽介绍一
AMPs是由相对较小的分子组成的异质基团，通常含有不到100个氨基酸。 它们最初是在20世纪60年代由Zeya和Spitznagel 在多形核白细胞溶酶体中描述的。 迄今为止，已在数据库（如数据库）中 确定和登记了2600多个AMP。 它们是由几乎所有的生物群产生的，包括细菌、真菌、植物和动物。 许多脊椎动物AMPs是由上皮表面分泌的，如 哺乳动物的气管、舌、肠粘膜或两栖动物的皮肤。 有些在中性粒细胞、单核 细胞和巨噬细胞中表达。 AMPs参与动物和植物的免疫防御系统。 构成表达或诱导它们在抵御微生物入侵者 的第一道防线中起着关键作用。
结构/分类 AMPs可以根据其氨基酸组成和结构进行分类。 可以区分两大类AMP。
第一类由线性分子组成，它们要么倾向于采用α螺旋结构，要么富含精氨酸、甘氨 酸、组氨酸、脯氨酸和色氨酸等某些氨 基酸。
第二类由含半胱氨酸的肽组成， 可分为单一或多个二硫结构。 在许多情 况下，抗菌活性需要存在二硫桥。 大多数AMPs是阳离子肽，但也有阴离子肽，如真皮素，一种富含天冬氨酸 的人肽和两栖动物的最大蛋白H5皮肤。 其他非阳离子AMPs包括神经肽前体分子的片段，如原啡肽A， 芳香二肽主要从二翅目幼虫中分离出来，或从节肢动物或茴香物种的氧结合 蛋白中提取的肽。
专肽生物可定制合成各类序列的抗菌肽，可标记FITC/FAM/TAMRA等常见荧光素。
Definition
Antimicrobial peptides (AMPs) are as widespread as bacterial inactivator molecules in the innate immune systems of insects, fungi, plants, and mammals. These peptides are also known as host defense peptides (HDPs) as they have other immuno-modulatory functions besides the direct antimicrobial actions and are even capable of killing cancerous cells 1,2.
Classification
Three broad categories of HDPs have been identified: 1) the linear peptides with helical structures, 2) the cysteine stabilized peptides with beta-sheet, and 3) a group of linear peptides rich in proline and arginine that primarily have been identified in non-mammalian species.
Structural characteristics
In mammals, cathelicidins and defensins are the two principal AMP families. Cathelicidins are peptides with a conserved proregion and a variable C-terminal antimicrobial domain. Defensins are the best-characterized AMPs, they have six invariant cysteines, forming three intramolecular cystine-disulfide bonds.
Mode of action
The mode of action of AMPs elucidated to date include inhibition of cell wall formation, formation of pores in the cell membrane resulting in the disruption of membrane potential with eventual lysis of the cell. These peptides also inhibit nuclease activity of both RNase and DNase.
Functions
They have a broad ability to kill microbes. AMPs form an important means of host defense in eukaryotes. Large AMPs (>100 amino acids), are often lytic, nutrient-binding proteins or specifically target microbial macromolecules. Small AMPs act by disrupting the structure of microbial cell membranes. It plays an active role in wound repair and regulation of the adaptive immune system. They have multiple roles as mediators of inflammation with impact on epithelial and inflammatory cells, influencing diverse processes such as cell proliferation, wound healing, cytokine release, chemotaxis and immune induction 3.
References
1. Gottlieb CT, Thomsen LE, Ingmer H, Mygind PH, Kristensen HH, Gram L(2008). Antimicrobial peptides effectively kill a broad spectrum of Listeria monocytogenes and Staphylococcus aureus strains independently of origin, sub-type, or virulence factor expression. BMC Microbiol., 8:205.
2. Yeaman MR and Yount NY (2003). Mechanisms of Antimicrobial Peptide Action and Resistance. Pharmocological Reviews, 55(1).
3. Hanna Galkowska H and Olszewski WL (2003). Antimicrobial peptides – their role in immunity and therapeutic potential. Centr Eur J Immunol., 28 (3):138–141.
抗菌肽介绍二
Ribosomally synthesized antimicrobial peptides (AMPs) constitute a structurally diverse group of molecules found virtually in all organisms. Most antimicrobial peptides contain less than 100 amino acid residues, have a net positive charge, and are membrane active. They are major players in the innate immune defense but can also have roles in processes as chemokine induction, chemotaxis, inflammation, and wound healing. In addition to their antimicrobial effects, many of them show antiviral and antineoplastic activities.
INTRODUCTION
AMPs are a heterogeneous group of relatively small molecules usually containing less than a hundred amino acids. They were first described in the 1960’s by Zeya and Spitznagel in polymorphonuclear leukocyte lysosomes.
To date, more than 2600 AMPs have been identified and registered in databases. They are produced by nearly all groups of organisms, including bacteria, fungi, plants, and animals. Many vertebrate AMPs are secreted by epithelial surfaces such as the tracheal, lingual, or intestinal mucosa of mammals or the skin of amphibia. Some are expressed in neutrophils, monocytes, and macrophages.
AMPs are involved in both animal and plant immune defense systems. Constitutively expressed or induced they play a key role in the first line of defense against microbial intruders.
STRUCTURE/CLASSIFICATION
AMPs can be classified on the basis of their amino acid composition and structure. Two major groups of AMPs can be distinguished. The first group consists of linear molecules which either tend to adopt α-helical structure or are enriched in certain amino acids such as arginine, glycine, histidine, proline, and tryptophan. The second group consists of cysteine-containing peptides which can be divided into single or multiple disulfide structures. In many cases, the presence of disulfide bridges is required for antimicrobial activity.
Most AMPs are cationic peptides, but there are also anionic peptides such as dermcidin, an aspartic acid-rich peptide from human and maximin H5 from amphibian skin. Other non-cationic AMPs include fragments from neuropeptide precursor molecules such as proenkephalin A, aromatic dipeptides primarily isolated from dipteran larvae, or peptides derived from oxygen-binding proteins from arthropod or annelid species.
MODE OF ACTION
Most AMPs act by provoking an increase in plasma membrane permeability. They preferentially target microbial versus mammalian cells. Selectivity is influenced by several factors such as differences in membrane composition: membranes of many bacterial pathogens contain negatively charged lipid moieties such as phosphatidylglycerol (PG), cardiolipin, and phosphatidylserine (PS), whereas mammalian membranes, commonly enriched in phosphatidylethanolamine (PE), phosphatidylcholine (PC) and sphingomyelin, are generally neutral in net charge.
The presence of sterols such as cholesterol and ergesterol within the membrane may be a further means by which AMPs can distinguish between mammalian or fungal cells and prokaryotes. A first step in the mechanism of membrane permeabilization is the electrostatic interaction between the positively charged AMP with the negatively charged membrane surface of the microorganism. Subsequent disruption of the membrane by creation of pores within the microbial membrane ultimately results in cell death of the organism due to leakage of ions, metabolites, cessation of membrane-coupled respiration, and biosynthesis.
Several models for pore formation such as the Barrel-Stave, the Toroidal or Wormhole Model, and the Carpet Model have been proposed (Fig. 1).
FIG. 1. MODE OF ACTION A BARREL-STAVE MODEL B TOROIDAL PORE OR WORMHOLE MODEL C CARPET MODEL
THE BARREL-STAVE MODEL
The Barrel-Stave model describes a mechanism in which AMPs form a barrellike pore within the bacterial membrane with the individual AMPs or AMP complexes being the staves. Arranged in this manner, the hydrophobic regions of the AMPs point outwards towards the acyl chains of the membrane whereas the hydrophilic areas form the pore.
THE TOROIDAL PORE OR WORMHOLE MODEL
The pores described by this model differ from those of the Barrel-Stave model. Primarily, the outer and inner leaflet of the membrane are not intercalated in the transmembrane channel.
THE CARPET MODEL
A different mechanism is proposed in the Carpet model where AMPs first cover the outer surface of the membrane and then disrupt the membrane like detergents by forming micelle-like units. Certain AMPs penetrate the bacterial membrane without channel formation. They act on intracellular targets by e.g. inhibiting nucleic acid and/or protein synthesis.
RESISTANCE
Resistance to AMPs can either be constitutive or inducible. Inherited resistance mechanisms include altered surface charge, active efflux, production of peptidases or trapping proteins, and modification of host cellular processes. For instance, Staphylococcus aureus manages to reduce the overall cell surface charge by esterification of the cell wall component teichoic acid with D-alanine and thereby increases its resistance against human AMPs. Another example for changing the surface net charge is the production of cationic lysine-substituted phosphatidylglycerol (L-PG) found in certain Staphylococcus aureus strains. In Gram-negative bacteria, addition of 4-aminoarabinose (Ara4N) to the phosphate group of the lipid A backbone or increased acylation of lipopolysaccharides (LPS) are important mechanisms of AMP resistance. Exposure to AMPs may also induce stress responses by which microorganisms try to survive. Inducible regulatory mechanisms have been described in a variety of organisms. For instance, the PhoP/PhoQ regulon in Salmonella has been demonstrated to regulate transcriptional activation of surface and secretory proteins, enzymes that modify lipopolysaccharide, lipid and protein constituents of the outer membrane and proteases that likely degrade certain AMPs.
EXAMPLES OF ANTIMICROBIAL PEPTIDES
| Cationic peptides enriched for specific amino acids |
|
|---|---|
| Glycine-containing peptides | Hymenoptaecin from honeybees |
| Glycine- and proline-containing peptides | Coleoptericin from beetles Holotricin from beetles |
| Histidine-containing peptides | Histatins from humans and some higher primates |
| Proline-containing peptides | Abaecin from honeybees |
| Proline- and arginine-containing peptides | Apidaecins from honeybees Bactenicins from cattle Drosocin from Drosophila PR-39 from pigs |
| Proline- and phenylalanine-containing peptides | Prophenin from pigs |
| Tryptophan-containing peptides | Indolicidin from cattle |
| Linear cationic α-helical peptides | |
|---|---|
| Andropin from insects Bombinin from amphibians Buforin II from amphibians CAP18 from rabbits Cepropins from insects Cecropin P1 from the pig intestinal parasitic nematode, Ascaris suum Ceratotoxin from insects Dermaseptin from amphibians LL-37 from human Magainin from amphibians Melittin from insects Pleurocidin from Pseudopleuronectes americanus |
| Anionic and cationic peptides that contain cysteine and form disulfide bonds |
|
|---|---|
| 1 Disulfide bond | Brevinins |
| 2 Disulfide bonds | Protegrins from pigs |
| 3 Disulfide bonds | α-Defensins from human, rabbits and rats β-Defensins from humans, cattle, mice, rats, pigs, goats and poultry θ-Defensin from the rhesus monkey Insect defensins (Defensin-A from Aedes aegypti) |
| 4 Disulfide bonds | Antifungal defensins from plants Drosomycin from Drosophila |
| Anionic peptides | Dermcidin from human skin Maximin H5 from amphibian skin |
| Anionic and cationic peptide fragments derived from precursor proteins |
Antimicrobial domains from bovine α-lactalbumin, human hemoglobin, lysozyme, and ovalbumin Aromatic dipeptides from dipteran larvae Casocidin I from human casein Enkelytin from proenkaphalin A Lactoferricin from lactoferrin |
ADAPTED FROM K.A. BROGDEN, NAT. REV. MICROBIOL. 3, 238-250 (2005)
IMPORTANT FAMILIES OF AMPS
BOMBININS
Bombinins constitute a family of AMPs produced in fire-bellied toads (Bombina species) active against Gram-negative and Gram-positive bacteria and fungi. Bombinins, bombinin-like peptides (BLPs), and Bombinin H molecules are found in the species Bombina bombina, Bombina variegata, and Bombina orientalis, whereas the homologous maximins and maximin H peptides are derived from the giant fire-bellied toad Bombina maxima. Bombinin H peptides contain either 17 or 20 amino acid residues and are more hydrophobic than bombinins, some of them contain D-alloisoleucine at position 2. They exhibit lower antibacterial activity than bombinins but, in contrast to them, they possess haemolytic activity.
CATHELICIDINS
Members of this family are amphipathic, cationic peptides with a broad-spectrum antimicrobial activity. Cathelicidins typically act by disrupting the integrity of bacterial membranes. They are characterized by an evolutionary conserved N-terminal cathelin- like domain of approximately 99-114 amino acid residues linked to a C-terminal antimicrobial domain of 12-100 residues that can be released upon proteolytic processing. Members of this family include linear peptides amongst them a number of proline-rich AMPs that show different types of proline repeat motifs (Bac5, Bac7, PR-39, prophenins) and the tryptophan-rich indolicidin characterized by three regularly spaced proline residues. The protegrins (PG-1 to PG-5) contain two disulfide bridges and an amidated C-terminus. Cathelicidins have been found in every mammalian species examined. In human, LL-37 (Product 4042456) is the only member of the cathelicidin family. The peptide consists of 37 amino acids and contains two leucine residues at the N-terminus. It is proteolytically cleaved from the 18 kDa precursor protein human cathelicidin antimicrobial protein CAP-18. LL-37 is primarily produced by phagocytic leucocytes and epithelial cells, and is involved in various processes such as direct killing of microorganisms, binding and neutralizing LPS, chemotaxis and chemokine induction, regulation of inflammatory responses, and wound healing. Its production is influenced by several factors such as microbial products, host cytokines, vitamin D3, and availability of oxygen. LL-37 orthologues in mouse and rat are CRAMP (mouse) (Product 4056438) and CRAMP (rat), respectively.
CECROPINS
Cecropins were first isolated from the giant silk moth Hyalophora cecropia. They can form amphipathic, α-helical structures and are structurally related to other cecropins as bactericidin, lepidopteran, and sarcotoxin. Cecropin P1 (Product 4039862), found in pig intestine, also belongs to this family. Most cecropins show broad-spectrum antibacterial activity. Cecropin A (Product 4030488) and B (Product 4030477) have also been demonstrated to possess tumoricidal activity against mammalian leukemia, lymphoma, and carcinoma cell lines.
CERATOTOXINS
This family consists of cationic α-helical amphipathic peptides expressed in the female reproductive accessory glands of the Mediterranean fruit fly Ceratitis capitata. The production of the peptides is enhanced by mating. Ceratotoxin A and ceratotoxin B are 29 amino acid peptides differing in two amino acids. Ceratotoxin C and D consist of 32 and 36 amino acids, respectively. The peptides of this family are active against Gram-negative as well as Grampositive bacteria and are supposed to act via the Barrel-Stave model. Ceratotoxin A has been shown to be mainly antibacterial for Gram-negative organisms.
DEFENSINS
Defensins are small cysteine-rich cationic peptides containing three or four disulfide bridges. They have been isolated from molluscs, acari, arachnids, insects, mammals, and plants. They are further divided into families on the basis of the spatial distribution of their cysteine residues. Three families, the α-, β- and θ-defensins, can be distinguished in mammals. α- and β-defensins are characterized by antiparallel β-sheet structures stabilized by three disulfide bonds. The θ-defensins are found in rhesus monkey and some other non-human primates but not in human, chimpanzee and gorilla. They consist of two nine amino acid peptides derived from different precursor proteins joined by head-to-tail cyclization. Invertebrate and plant defensins contain three or four disulfide bridges, respectively. Insect and mammalian defensins are mainly active against bacteria while most plant defensins possess antifungal activity.
DERMASEPTINS
The peptides of the dermaseptin family are closely related and consist of 28-34 amino acids. They were originally isolated from skin extracts of the South American arboreal frog Phyllomedusa sauvagei and contain a conserved tryptophan residue at position 3. Dermaseptins exhibit broad-spectrum antimicrobial activity against Gram-positive and Gram-negative bacteria.
HISTATINS
Histatins are histidine-rich and mostly cationic peptides found in the saliva of humans and some higher primates. They are active against a broad-spectrum of bacteria and fungi. The antifungal activity of the human salivary peptide histatin-5 has been extensively studied and is supposed to be due to inhibition of mitochondrial respiration and the formation of reactive oxygen species. Histatin-5 has also been shown to inhibit both host-derived and bacterial proteolytc enzymes involved in peridontal diseases. Histatin-8, a peptide from human parotid secretion, has been shown to inhibit hemagglutination activity of Porphyromonas gingivalis 381, a Gram-negative bacterium involved in certain forms of periodontal disease. The peptide may function as a binding domain for the hemagglutinins of Porphyromonas gingivalis during agglutination.
MAGAININS
Magainins constitute a family of linear amphipathic cationic AMPs discovered in the skin of Xenopus laevis. The two closely related members of this family, magainin I (Product 4012844) and magainin II (Product 4013706) differ merely in two positions and are 23 amino acids in length. Magainins exhibit broad-spectrum antimicrobial activity against Gram-negative and Gram-positive bacteria, fungi and protozoa and are also cytotoxic for many murine and human cancer cell lines.
CONCLUSIONS
The structures of AMPs represent a unique source for the targeted exploration of new applications in the therapy of microbial and viral infection, cancer, and sepsis. Modern synthetic methods will allow the relatively cheap and accurate production of lead compounds and peptide candidates. The achievements in peptide library generation, analytical methods as mass spectrometry, and screening and formulation technologies may contribute to solve intrinsic problems associated with the use of AMPs as therapeutic agents such as susceptibility to proteases and host toxicity. Bachem has considerable expertise and long-standing experience in peptide synthesis. With our capacity to upscale the production of simple and modified peptides, we are the partner of choice for the pharmaceutical industries.
多肽Biotin-Leu-Cys-Leu-Leu-Gly-Asp-Phe-Phe-Arg-Lys-Ser-Lys-Glu-Lys-Ile-Gly-Lys-Glu-Phe-Lys-Arg-Ile-Val-Gln-Arg-Ile-Lys-Asp-Phe-Leu-Arg-Asn-Leu-Val-Pro-Arg-Thr-Glu-Ser-COOH的合成步骤：
1、合成CTC树脂：称取2.43g CTC Resin（如初始取代度约为1.17mmol/g）和3.41mmol Fmoc-Ser(tBu)-OH于反应器中，加入适量DCM溶解氨基酸（需要注意，此时CTC树脂体积会增大好几倍，避免DCM溶液过少），再加入8.53mmol DIPEA（Mw：129.1,d：0.740g/ml），反应2-3小时后，可不抽滤溶液，直接加入1ml的HPLC级甲醇，封端半小时。依次用DMF洗涤2次，甲醇洗涤1次，DCM洗涤一次，甲醇洗涤一次，DCM洗涤一次，DMF洗涤2次（这里使用甲醇和DCM交替洗涤，是为了更好地去除其他溶质，有利于后续反应）。得到 Fmoc-Ser(tBu)-CTC Resin。结构图如下：
2、脱Fmoc：加3倍树脂体积的20%Pip/DMF溶液，鼓氮气30分钟，然后2倍树脂体积的DMF 洗涤5次。得到 H2N-Ser(tBu)-CTC Resin 。（此步骤脱除Fmoc基团，茚三酮检测为蓝色，Pip为哌啶）。结构图如下：
3、缩合：取8.53mmol Fmoc-Glu(OtBu)-OH 氨基酸，加入到上述树脂里，加适当DMF溶解氨基酸，再依次加入17.06mmol DIPEA，8.1mmol HBTU。反应30分钟后，取小样洗涤，茚三酮检测为无色。用2倍树脂体积的DMF 洗涤3次树脂。（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。得到Fmoc-Glu(OtBu)-Ser(tBu)-CTC Resin。氨基酸：DIPEA：HBTU：树脂=3：6：2.85：1（摩尔比）。结构图如下：

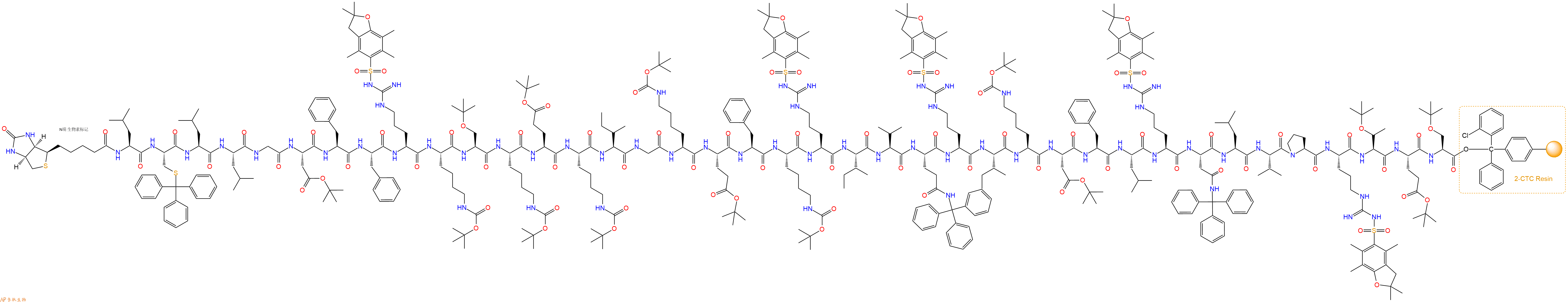

4、依次循环步骤二、步骤三，依次得到
H2N-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
H2N-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
Fmoc-Leu-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin
以上中间结构，均可在专肽生物多肽计算器-多肽结构计算器中，一键画出。

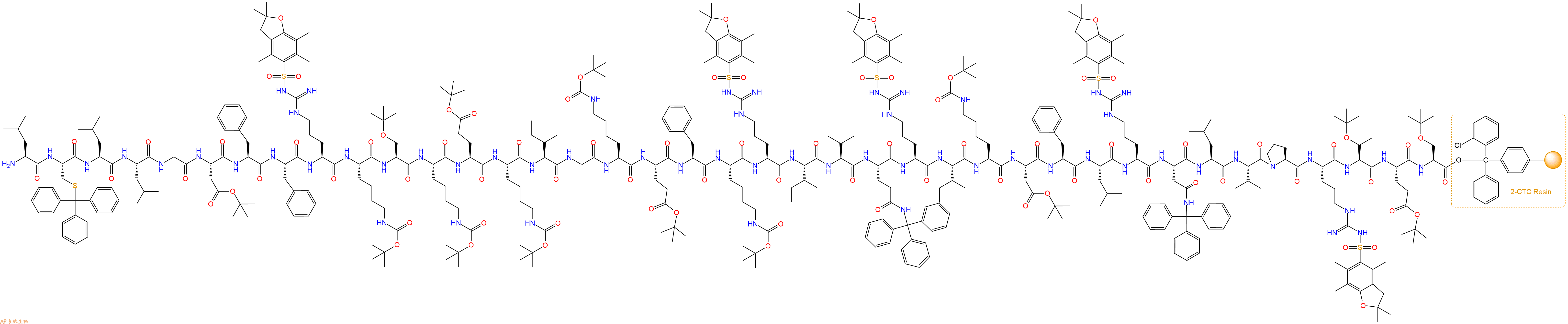

最后再经过步骤二得到 H2N-Leu-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTC Resin，结构如下：
5、生物素反应连接：在上述树脂中，加入适当DMF后，再加入8.53mmol 生物素到树脂中，再加入17.06mmol DIPEA、8.1mmol HBTU，鼓氮气反应30分钟。用2倍树脂体积的DMF 洗涤3次树脂（洗涤树脂，去掉残留溶剂，为下一步反应做准备）。 得到Biotin-Leu-Cys(Trt)-Leu-Leu-Gly-Asp(OtBu)-Phe-Phe-Arg(Pbf)-Lys(Boc)-Ser(tBu)-Lys(Boc)-Glu(OtBu)-Lys(Boc)-Ile-Gly-Lys(Boc)-Glu(OtBu)-Phe-Lys(Boc)-Arg(Pbf)-Ile-Val-Gln(Trt)-Arg(Pbf)-Ile-Lys(Boc)-Asp(OtBu)-Phe-Leu-Arg(Pbf)-Asn(Trt)-Leu-Val-Pro-Arg(Pbf)-Thr(tBu)-Glu(OtBu)-Ser(tBu)-CTCResin。 结构如下：
6、切割：6倍树脂体积的切割液（或每1g树脂加8ml左右的切割液），摇床摇晃 2小时，过滤掉树脂，用冰无水乙醚沉淀滤液，并用冰无水乙醚洗涤沉淀物3次，最后将沉淀物放真空干燥釜中，常温干燥24小试，得到粗品Biotin-Leu-Cys-Leu-Leu-Gly-Asp-Phe-Phe-Arg-Lys-Ser-Lys-Glu-Lys-Ile-Gly-Lys-Glu-Phe-Lys-Arg-Ile-Val-Gln-Arg-Ile-Lys-Asp-Phe-Leu-Arg-Asn-Leu-Val-Pro-Arg-Thr-Glu-Ser-COOH。结构图见产品结构图。
切割液选择：1）TFA：H2O=95%：5%
2）TFA：H2O：TIS=95%：2.5%：2.5%
3）三氟乙酸：茴香硫醚：1，2-乙二硫醇：苯酚：水=87.5%：5%：2.5%：2.5%：2.5%
（前两种适合没有容易氧化的氨基酸，例如Trp、Cys、Met。第三种适合几乎所有的序列。）
6、纯化冻干：使用液相色谱纯化，收集目标峰液体，进行冻干，获得蓬松的粉末状固体多肽。不过这时要取小样复测下纯度 是否目标纯度。
7、最后总结：
